PE Coated Fabric
High-density polyethylene (HDPE) tapes are woven and coated with low-density polyethylene (LDPE) coating to provide a weather tight surface.
DESCRIPTION
PE Coated Fabric is Polypropylene material coated on different fabrics. Currently, we has 2 types PE Coated Fabrics Products:
PE Coated on Woven Fabric Vs. PE Coated on Non-Woven Fabric
1. PE Coated on Woven Fabric (PE Tarpaulin):
INTRODUCTION
It is made from HDPE cross weaving fabric, laminated with LDPE. We usually call it woven reinforced PE Tarpaulin. It's waterproof, crumble proof, and also weatherproof which means No leakages, No humidity, and No attacks. Works as the best temporary tents and coverings. There are a few different structures for the fabric:
1). 2 layers Type: 1 Layer HDPE woven fabric with 1 layer LDPE coating. These are usually used for Roofing underlay, or used to laminated with other material.
2). 3 layers Type: 1 Layer HDPE woven fabric with 2 layers of LDPE coating. These are normal tarps used for many different industries nowadays.
3). 4 layers Type: 1 Layer HDPE woven fabric with 2 layers of LDPE coating, and laminated with 1 layer of PE film. This technic usually used for printing tarps.
4). 5 layers Type: 2 Layers PE woven fabrics and 3 layers of coating. This technic enhances the anti-leaking ability of PE Tarps and is usually used as Geomembrane or that applications that need to be extremely waterproof.
5). 6 layers Type: Based on our 5 layer type, we laminated one more printing layer. It increases the waterproof ability also the Wearing resistance
APPLICATIONS
WHAT THIS PRODUCTS USED FOR?
- General Cover, Construction and Machinery Equipment Cover
- Covers for open-stored goods, Covers for trucks/automobiles/boat
- Covers for Swimming Pools and Garden Furniture etc
- Lining materials for storage tanks and containers
- Lining material for irrigation Canals and grain silos
- Industrial Cover, Tents, Picnic mats
SPECIFICATION
Item | PE Coated Woven Fabric |
|||
Material | HDPE + LDPE | |||
Weight | Light Duty: 40 GSM ~ 90gsm Middle Duty: 90-140gsm Heavy Duty:150 - 210gsm Super Heavy Duty: 220 -290gsm Extreme Heavy: 300-420 GSM | |||
Width | 2 meter or 4 meter without joint. Available for wider fabric by heat sealing. Or as the client's requirment | |||
Length | From 20m to 20000m length | |||
Density / sq.inch | 5X, 6X6, 7X7, 8X7, 8X8, 10X8, 10X10, 12X12, 14X14, 16X16 | |||

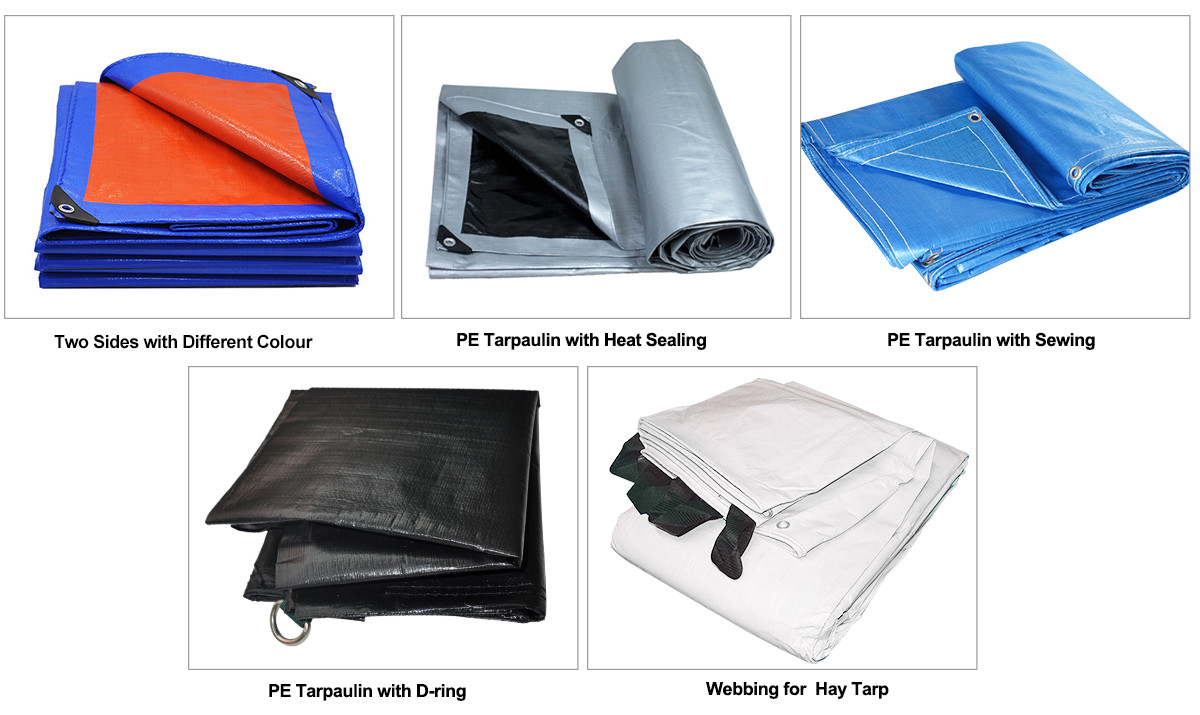

Making | a. All edges with PP rope in hem; | |||
b. Four corners reinforced by plastic; | ||||
|
c. Rustproof Aluminum eyelet in 1m (1 yard or 3 feet) interval;
|
||||
|
d. Four corner reinforced by plastic triangle.
|
||||
|
e. Each piece folded into a plastic bag with customer's label inserted
|
||||
Special treatment (Available upon request) | UV Protection Fire Retardant/Frame Retardant Extreme Long Life (upto 10 years) Superior Strength (Special Purpose) Light Diffusion Anti-Drop & Auti-Mist Anti-Dust IR Thermic Printing Any Pattern(Max. 5 Color) | |||
Other | Logos or other company information could be printed on tarpaulin. | |||
Reinforced strip(7.5cm) could be added. | ||||
PE COATED ON WOVEN FABRIC PRODUCT LIST

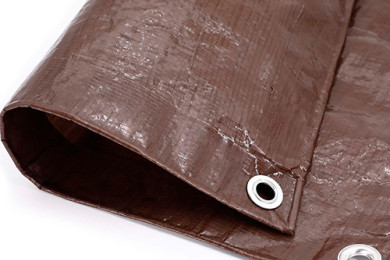

The surface texture of the coating is smooth,and density is uniform. Widely useing in construction.

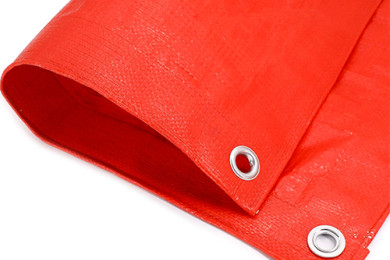

Light Duty Poly Tarps (PE Tarpaulin) is ideal when you need something light, easy and on the go.

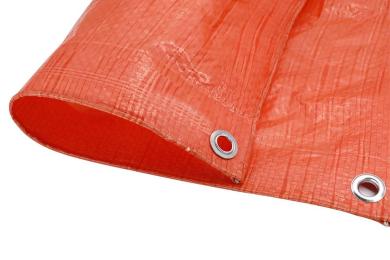

PE Tarpaulin widely used for truck canopy, ship, cover and cargo storage or transportation in mineral factories and ports

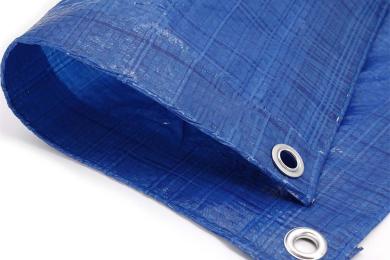

UV treated and can be placed anywhere to prevent absorbing water, debris and rock protection, harsh weather protection.
2. PE Coated on Non-Woven Fabric:
INTRODUCTION

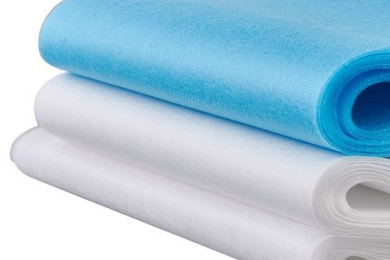

PE Coated nonwoven is usually made from spun-bond consisting of polyester fiber or polypropylene fiber that is then coated with another material.
It is often used as a backing or stabilizer for different materials in the construction and Medical industries. The advantage of this material is better breaking strength, surface moisture resistance, water resistance, filtration efficiency, and anti-synthetic blood penetration.
Construction: The construction industry uses nonwoven, usually spunbond, coated with polyethylene for waterproofing in wet rooms or as wind and moisture protection outdoors. Coated spunbond is also used as a vapor barrier. With different coatings, you can create different densities and levels of permeability. Our products are HouseWrap and Roofing Underlayment.
Absorbents: Because the material can block liquid but allow moisture in, it is often used for bags of moisture or odor absorbents e.g. in the packaging and transport of food products or clothing.
Medical: It is mostly used for medical and hygiene cloths such as surgical gowns, isolation gowns, disposable protective clothing, etc. it's cheap than PP spunbond non-woven fabric.
We offer different levels of density air and liquid permeability for indoor, wet room, and outdoor applications.
Among other products, we have coated spunbond that allows moisture through but blocks liquids. Our coated spunbond is available in rolls up to 3.0 meters in width and up to 15,000 meters in length.
PE COATED on NON-WOVEN FABRIC PRODUCT LIST

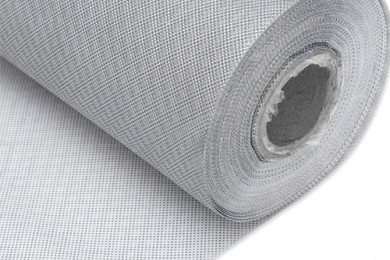

PE Coated nonwoven is often used as a backing or stabilizer for different materials in the construction and Medical industries.
PE Coated nonwoven is often used as a backing or stabilizer for different materials in the construction and Medical industries.
ALL PRODUCTS WITH PE COATED FABRICS
11 products found
PE Bag is used for packing rice, flour, sugar, salt, animal feed, asbestos, fertilizer, sand, cement and so on.
PE Coated nonwoven is often used as a backing or stabilizer for different materials in the construction and Medical industries.
PE Coated nonwoven is often used as a backing or stabilizer for different materials in the construction and Medical industries.
UV treated and can be placed anywhere to prevent absorbing water, debris and rock protection, harsh weather protection.
Light Duty Poly Tarps (PE Tarpaulin) is ideal when you need something light, easy and on the go.
Poly tarp is made of strong, tear-resistant polyethylene that gives maximum protection from rain, dust or grease.
Ideal for a variety of applications including construction, landscaping, roof covering, and more.
UV treated and can be placed anywhere to prevent absorbing water, debris and rock protection, harsh weather protection.
PE Tarpaulin widely used for truck canopy, ship, cover and cargo storage or transportation in mineral factories and ports
Light Duty Poly Tarps (PE Tarpaulin) is ideal when you need something light, easy and on the go.
The surface texture of the coating is smooth,and density is uniform. Widely useing in construction.
