Home / All / Industrial Fabrics / PVC Coated Fabric /

VanTop-550/600/650

VanTop-550/600/650

VanTop-550/600/650
VanTop-550/600/650VanTop-550/600/650

VanTop-550/600/650

CategoriesPVC Coated Fabric
BrandTAIMEI Tarpaulin Shade Fabric Manufacturer
Life Time3 year
Weight500-650g/m²
Bese FabricPolyester
Thickness0.42mm-0.54mm
Surface FinishingPVC
Tensile Strength-Warp2200--2300N/5cm
Tensile Strength-Weft1400--1450N/5cm
Coating Adhesiion80N/5cm
Temp Resistance-30 to +70℃
Fire RetardentB1,B2 Level
TreatmentUV treated; Acrylic Lacquered
Printing CompatibilityPrinting Ready
ColorCan be Customized
Update TimeMar 29,2024
Detail Information

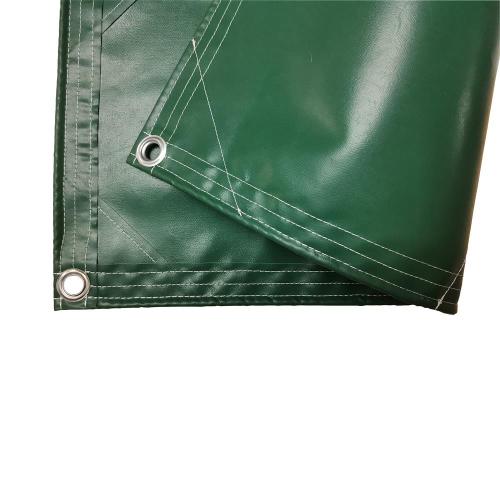

VanTop-550/600/650

The VanTop-550/600/650  known for strength and durability. Ssturdy and made to handle extreme outdoor conditions and heavy stress.  It has a soft hand and aesthetic smooth matte finish for a refined, clean look. For maximum durability, our multi-purpose vinyl fabric is treated to help prevent UV damage and mildew.



Specifications:

MATERIAL DESCRIPTION
ITEM UNIT RESULT TEST STANDARD
Weight (+/-3%) g/m² 550 600 700 DIN EN ISO 2286-2
Bese Fabric Type Polyester Polyester Polyester DIN 60001
Yarn Denier 600*600 600*900 900*900 DIN EN ISO 2060
Fabric Count yarn/sq.inch 2*2 2*3 3*3 DIN EN 1049-2
Thickness mm 0.42 0.5 0.54 -
Roll Width (Max) m 2.5 2.5 2.5 -
Roll Length (Max) m 20 - 800 20 - 800 20 - 800 -
Surface Finishing Material PVC PVC PVC
Tensile Strength-Warp N/5cm 2200 2200 2300 DIN53354
Tensile Strength-Weft N/5cm 1400 1450 1450 DIN53354
Tear Strength-Warp N/5cm 100 100 120 DIN53354
Tear Strength--Weft N/5cm 100 120 120 DIN53363
Coating Adhesiion N/5cm 80 80 80 DIN53363
Temp Resistance -30 to +70 -30 to +70 -30 to +70 DIN EN 1876-2
Fire Retardent B1,B2 level is optional upon request
Treatment UV treated; Acrylic Lacquered upon request.
Color 16 standard color, and can be customized.
Printing Compatibility Printing Ready
Temp Resistance Special treatment to use under -40℃ (optional)
Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications.


Features:

  • Mildew Resistant
  • Rot Resistant
  • Acid Resistant
  • Tear Resistant
  • Customized FR Standard
  • REACH Regulations Standard
  • Anti cold crac

Colors Available:

  • Black

  • White

  • Red

  • Orange

  • Dark Green

  • Dark Red

  • Blue

  • Grey

  • Green

Applications:

  • Truck Cover

    Can effectively protect your vehicle from harmful UV rays.
  • Trailer Cover

    Significantly reduces premature aging of trailer and helps maintain resale value.
  • Boat Covers

    Protect your marine investment from the damaging effects of sun

Downloads:
