VanPro-550/600/650

Categories	PVC Coated Fabric
Brand	TAIMEI Tarpaulin Shade Fabric Manufacturer
Life Time	3 year
Weight	550-650g/m²
Bese Fabric	Polyester
Thickness	0.42-0.54mm
Roll Width (Max)	2.5m
Roll Length (Max)	20 - 800m
Surface Finishing	PVC
Tear Strength-Warp	100N/5cm
Tear Strength--Weft	100-120N/5cm
Coating Adhesiion	80N/5cm
Temp Resistance	-30 to +70℃
Fire Retardent	B1,B2 Level
Treatment	UV treated; Acrylic Lacquered
Printing Compatibility	Printing Ready
Update Time	Apr 19,2024

Detail Information

: VanPro-550/600/650

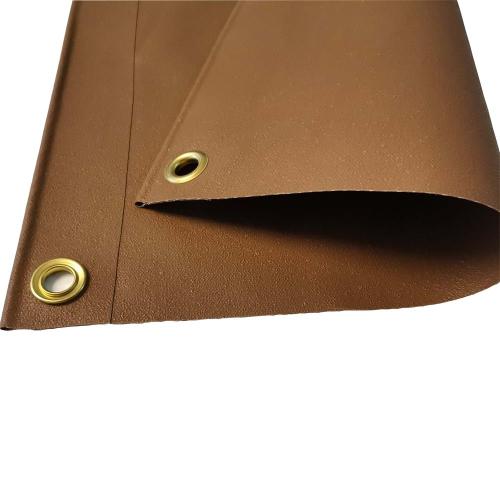

This material is made to handle extreme outdoor conditions and heavy stress. Ideal for many other uses such as heavy duty bags, outdoor covers, play mats, outdoor shelter uses, the applications are endless. It could be the solution you are looking for outdoors or indoors!

MATERIAL DESCRIPTION
ITEM	UNIT	RESULT			TEST STANDARD
Weight (+/-3%)	g/m²	550	600	700	DIN EN ISO 2286-2
Bese Fabric	Type	Polyester	Polyester	Polyester	DIN 60001
Yarn	Denier	600*600	600*900	900*900	DIN EN ISO 2060
Fabric Count	yarn/sq.inch	2*2	2*3	3*3	DIN EN 1049-2
Thickness	mm	0.42	0.5	0.54	-
Roll Width (Max)	m	2.5	2.5	2.5	-
Roll Length (Max)	m	20 - 800	20 - 800	20 - 800	-
Surface Finishing	Material	PVC	PVC	PVC
Tensile Strength-Warp	N/5cm	2200	2200	2300	DIN53354
Tensile Strength-Weft	N/5cm	1400	1450	1450	DIN53354
Tear Strength-Warp	N/5cm	100	100	120	DIN53354
Tear Strength--Weft	N/5cm	100	120	120	DIN53363
Coating Adhesiion	N/5cm	80	80	80	DIN53363
Temp Resistance	℃	-30 to +70	-30 to +70	-30 to +70	DIN EN 1876-2
Fire Retardent	B1,B2 level is optional upon request
Treatment	UV treated; Acrylic Lacquered upon request.
Color	16 standard color, and can be customized.
Printing Compatibility	Printing Ready
Temp Resistance	Special treatment to use under -40℃ (optional)
Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications.

Truck Cover

Can effectively protect your vehicle from harmful UV rays.
Trailer Cover

Significantly reduces premature aging of trailer and helps maintain resale value.
Boat Covers

Protect your marine investment from the damaging effects of sun
