LamiEco-300/500 Economic FR Tarpaulin

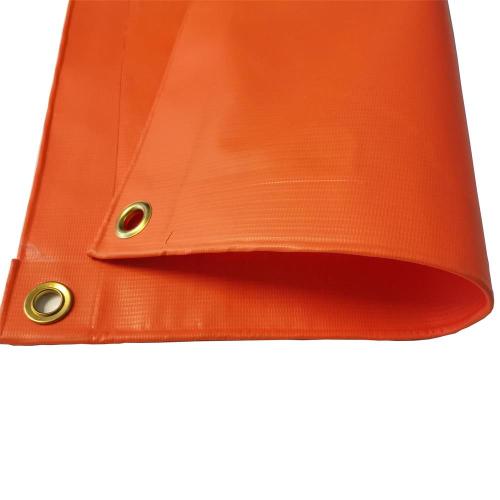

LamiEco-300/500 Economic FR Tarpaulin

LamiEco-300/500  Economic FR Tarpaulin
LamiEco-300/500  Economic FR TarpaulinLamiEco-300/500  Economic FR Tarpaulin
CategoriesPVC Coated Fabric
AlbumView larger image
BrandTaimei
Weight300gsm-500gsm
Life Time1-2 year
Bese FabricPolyester
Fabric Count18*12yarn/sq.inch
Thickness0.3-0.5mm
Surface FinishingPVC
Tensile Strength-Warp500N/5cm
Tensile Strength-Weft500N/5cm
Tear Strength-Warp150N/5cm
Tear Strength--Weft150N/5cm
Coating Adhesiion50N/5cm
Temp Resistance-30 to +70℃
Fire RetardentB1,B2 Level
Printing CompatibilityPrinting Ready
Update Time2020-11-29
Detail Information

LamiEco-300/500 Economic FR Tarpaulin

PVC tarpaulin is a three-ply fabric consisting of a piece of scrim laminated between two sheets of polyvinyl film (PVC).

PVC tarpaulin is coated polyester waterproof cloth is in high strength polyester canvas cloth, coated with polyvinyl chloride (PVC) paste resin with growth agent.

Features:

MATERIAL DESCRIPTION
ITEM UNIT RESULT TEST STANDARD
Weight (+/-3%) g/m² 300400500DIN EN ISO 2286-2
Bese Fabric Type Polyester Polyester Polyester DIN 60001
Yarn Denier 200*300300*500500*500DIN EN ISO 2060
Fabric Count yarn/sq.inch 18*1218*1218*12DIN EN 1049-2
Thickness mm 0.30.40.5-
Roll Width (Max) m 3.2/5.13.2/5.13.2/5.1 -
Roll Length (Max) m 20 - 80020 - 80020 - 800 -
Surface Finishing Material PVC PVC PVC
Tensile Strength-Warp N/5cm 500 500 500 DIN53354
Tensile Strength-Weft N/5cm 500 500 500 DIN53354
Tear Strength-Warp N/5cm 150 150 150 DIN53354
Tear Strength--Weft N/5cm 150 150 150 DIN53363
Coating Adhesiion N/5cm 50 50 50 DIN53363
Temp Resistance -30 to +70 -30 to +70 -30 to +70 DIN EN 1876-2
Fire Retardent B1,B2 level is optional upon request
Treatment UV treated; Acrylic Lacquered upon request.
Color 16 standard color, and can be customized.
Printing Compatibility Printing Ready
Temp Resistance Special treatment to use under -40℃ (optional)
Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications.



Features:

  • 100% Waterproof
  • High Tenacity Strength
  • Flexibility
  • Crack Resistant
  • Customized FR Standard
  • REACH Regulations Standard
  • Cadium Free

Colors Available:

  • Black

  • White

  • Red

  • Orange

  • Dark Green

  • Dark Red

  • Blue

  • Grey

  • Green



Applications:
