PVC Coated Textilene Mesh Fabric for Outdoor Chair Material

PVC Coated Textilene Mesh Fabric for Outdoor Chair Material

PVC Coated Textilene Mesh Fabric for Outdoor Chair Material
PVC Coated Textilene Mesh Fabric for Outdoor Chair MaterialPVC Coated Textilene Mesh Fabric for Outdoor Chair Material

PVC Coated Textilene Mesh Fabric for Outdoor Chair Material

CategoriesTextilene Vinyl Mesh Fabric
BrandTAIMEI Tarpaulin Shade Fabric Manufacturer
Weight320~520 gsm
MaterialPolyester + PVC
ColorAs Per The Request
Update TimeMay 22,2024
Detail Information
PVC Coated Textilene Mesh Fabric for Outdoor Chair Material

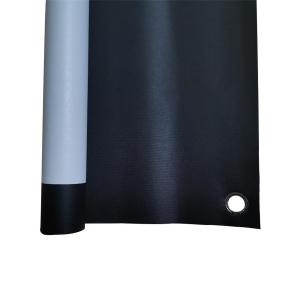

PVC Coated Textilene Mesh Fabric is made of polyester yarns individually PVC coated, woven  to become durable fabrics. Available in a variety of colors, PVC Coated Textilene Mesh Fabric mildew and rot resistant, colorfast, and are very easy to clean and dry quickly. Textilene mesh fabrics show good flame retardant properties also and can be safely used, textilene products are tough and suitable for a range of weathers.
PVC Coated Textilene Mesh 4
PVC Coated Textilene Mesh 5
Features
Soft And Odour Free

Neat, Tight & Dimensionally Stable

Not Go Distorting Or Changing Shape

No Curling Selvedge Problems

Fire-resistant & Colorfastness Grade 8
PVC Coated Textilene Mesh 6
SPECIFICATION
Polyester 3% Openness
Openness
3%
3%
3%
3%
3%
Composition
30% Polyester, 70% PVC
30% Polyester, 70% PVC
30% Polyester, 70% PVC
30% Polyester, 70% PVC
30% Polyester, 70% PVC
Thickness
0.58mm
0.6mm
0.58mm
0.7mm
0.8mm
Weight
400gsm
410gsm
450gsm
500gsm
620gsm
Density
46 x 48
46 x 48
54 x 48
36 x 34
38 x 46
Yarn
220D
220D
220D
420D
420D
Breaking Strength
1450N x 1500N
1450N x 1500N
1450N x 1500N
2250N x 2250N
2700N x 2250N
Elongation
Warp: 30% Weft: 20%
Warp: 30% Weft: 20%
Warp: 30% Weft: 20%
Warp: 22% Weft: 17%
Warp: 22% Weft: 17%
Colour Fastness
8
8
8
8
8
Polyester 5% Openness
Openness
5%
5%
5%
Composition
30% Polyester, 70% PVC
30% Polyester, 70% PVC
30% Polyester, 70% PVC
Thickness
0.5mm
0.55mm
0.64mm
Weight
350gsm
410gsm
510gsm
Density
48 x 22
48 x 46
36 x 35
Yarn
220D
220D
420D
Breaking Strength
1600N x 1000N
1600N x 1500N
2000N x 2000N
Elongation
Warp: 22% Weft: 23%
Warp: 22% Weft: 23%
Warp: 22% Weft: 16%
Colour Fastness
8
8
8
Polyester 10% Openness
Openness
10%
10%
10%
10%
Composition
30% Polyester, 70% PVC
30% Polyester, 70% PVC
30% Polyester, 70% PVC
30% Polyester, 70% PVC
Thickness
0.5mm
0.79mm
0.6mm
0.79mm
Weight
360gsm
400gsm
470gsm
620gsm
Density
40 x 40
54 x 15
32 x 32
46 x 44
Yarn
220D
220D Warp x 500D Weft
420D
420D
Breaking Strength
1250N x 1250N
1600N x 1000N
1500N x 1500N
1600N x 1300N
Elongation
Warp: 22% Weft: 23%
Warp: 22% Weft: 14%
Warp: 22% Weft: 16%
Warp: 22% Weft: 26%
Colour Fastness
8
8
8
8
PVC Coated Textilene Mesh 8
PVC Coated Textilene Mesh 9
APPLICATION
PVC Coated Textilene Mesh 10
FACTORY OVERVIEW
PVC Coated Textilene Mesh 11
PVC Coated Textilene Mesh 13
