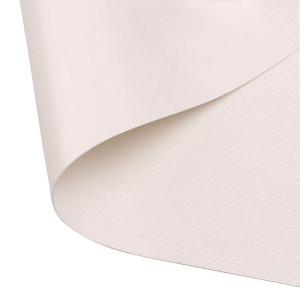

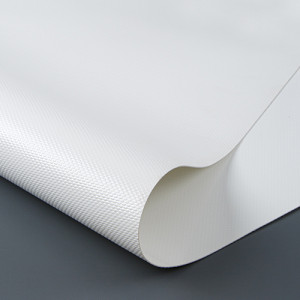

Durable 1300gsm PVC Coated Polyester Fabrics For Tensile Membrane Structures
Durable 1300gsm PVC Coated Polyester Fabrics For Tensile Membrane Structures
Categories | temp |
---|---|
Brand | TAIMEI Tarpaulin Shade Fabric Manufacturer |
Total Weight | 1300 g/㎡ |
Base Thread Density | 1500 D*1500D |
Coating | PVC coating |
Color | As per the request |
Base Fabric Density | 30x30 Panama |
Update Time | Apr 24,2024 |
Detail Information
Membrane Structure Fabric
Tensile membrane structures take shade coverings and translate them into a whole new level of architecture. Their lightweight and free-form design do away with conventional building parameters and constraints to provide an unlimited scope and freedom of design. The uses are many: from walkways to covered lunch areas, to school playground coverings.
Features
100% high tenacity polyester yarns with PVC coating
Laminated technology & Hot-melt Coating technology
Good strength, good flexibility and adhesion strength
Outstanding tearing strength for welding
Cold Crack Resistance,Anti-Mildew,Anti-Static treatment,Waterproof
High Strength to prevent any damage during installing
Special treatments adopted to fit into different industry
Special treatment available:Flame Retardant;Anti-Static;Anti-cold
SPECIFICATION
Properties
|
Units | Test method | Average value |
Base Fabric Yarn | Dtex | High tenacity polyester 1500 D | |
Finish | Glossy with two side Lacquering | ||
Coating | PVC coating | ||
Color | As per the request | ||
Base Fabric Density | Thread/cm | FZ/T01003 | 30x30 Panama |
Width | cm | Up to 320 | |
Finished Fabric Weight | Gram/m2 | FZ/T01003 | 1300±5% |
Thickness - Finished Product | mm | GB/T6672-2001 | 1.20±0.03 |
Tensile strength at MD | N/5cm | GB/T1040 | 6000 |
Tensile strength at CD | N/5cm | GB/T1040 | 5500 |
Tearing Strength at MD | N/5cm | GB/T16578 | 800 |
Tearing Strength at CD | N/5cm | GB/T16578 | 700 |
Peeling Strength | N/5cm | GB/T3917 | 120 |
Temperature Range | ℃ | -20 ~ +70 | |
Flame Retardancy | NFPA-701,B1 ,B2,M1.M2 | Optional |
APPLICATION
WHAT THIS PRODUCTS USED FOR?
• Tensile structures
• Large format technical textiles
• Portable storage structures
• Airport hangars
• Shade systems, shadings
• Sports Halls
• Architectural structures
