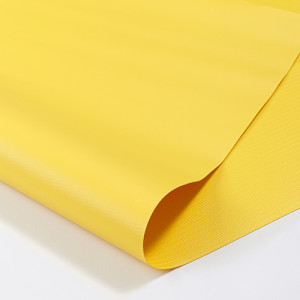

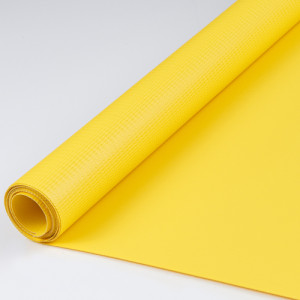

Fire Resistance Ventilation Duct Fabric with 700gsm 1000Dx2000D 20x10 Yellow/Black
Fire Resistance Ventilation Duct Fabric with 700gsm 1000Dx2000D 20x10 Yellow/Black
Fire Resistance Ventilation Duct Fabric with 700gsm 1000Dx2000D 20x10 Yellow/Black
Categories | Flexible Ventilation Duct Fabric |
---|---|
Brand | TAIMEI Tarpaulin Shade Fabric Manufacturer |
Total Weight | 700 g/㎡ |
Base Thread Density | 1000 D*2000D |
Adhesion | 100 N/5cm |
Temp Resistance | -30 ~ +70 ℃ |
Update Time | Oct 5,2024 |
Detail Information
Flexible Air Duct Fabric
PVC Coated Flexible Ventilation Duct Fabric, also called Flexible Aire Duct Fabric is an innovative and cost-effective fabric alternative to traditional metal ductwork providing precise and efficient heating, cooling, or ventilating for virtually any building application. This PVC fabric comprises a woven high tenacity polyester base fabric and a flexible plastic is PVC coating (applied to both sides of the polyester base fabric) is completely waterproof, fire retardant, anti-static, very strong, and durable.
Features
Light Weight compare to the traditional metal ducts
High-temperature resistant -30℃ to 70℃
Excellent resistance to chemicals
Flame retardant
Highly flexible, easily adapted to round, oval or square ducts
Strong material, easily withstands repeated bending and flexing
SPECIFICATION
Properties
|
Test Method | Units | |
Basic Fabric Properties | DIN53351 | Thread/inch | 20x10 |
Base Thread Density | DIN53350 | Denier | 1000D*2000D |
Finished Fabric Weight | Din53352 | Gram/m2 | 700 |
Breaking Strength Warp | GB/T1040 | N/5cm | 2600 |
Break Strength Weft | GB/T1040 | N/5cm | 2600 |
Tearing Strength Warp | Din53356 | N | 300 |
Tear Strength Weft | Din53356 | N | 300 |
Adhesion | Din53357 | N/5cm | 100 |
Temp Resistance | DIN 53368 | ℃ | -30 ~ +70 |
APPLICATION
WHAT THIS PRODUCTS USED FOR?
Suitable for duct application, fire water mains, gas pipelines, gymnasiums, pools, food processing, fitness centers, convention centers, and schools.
